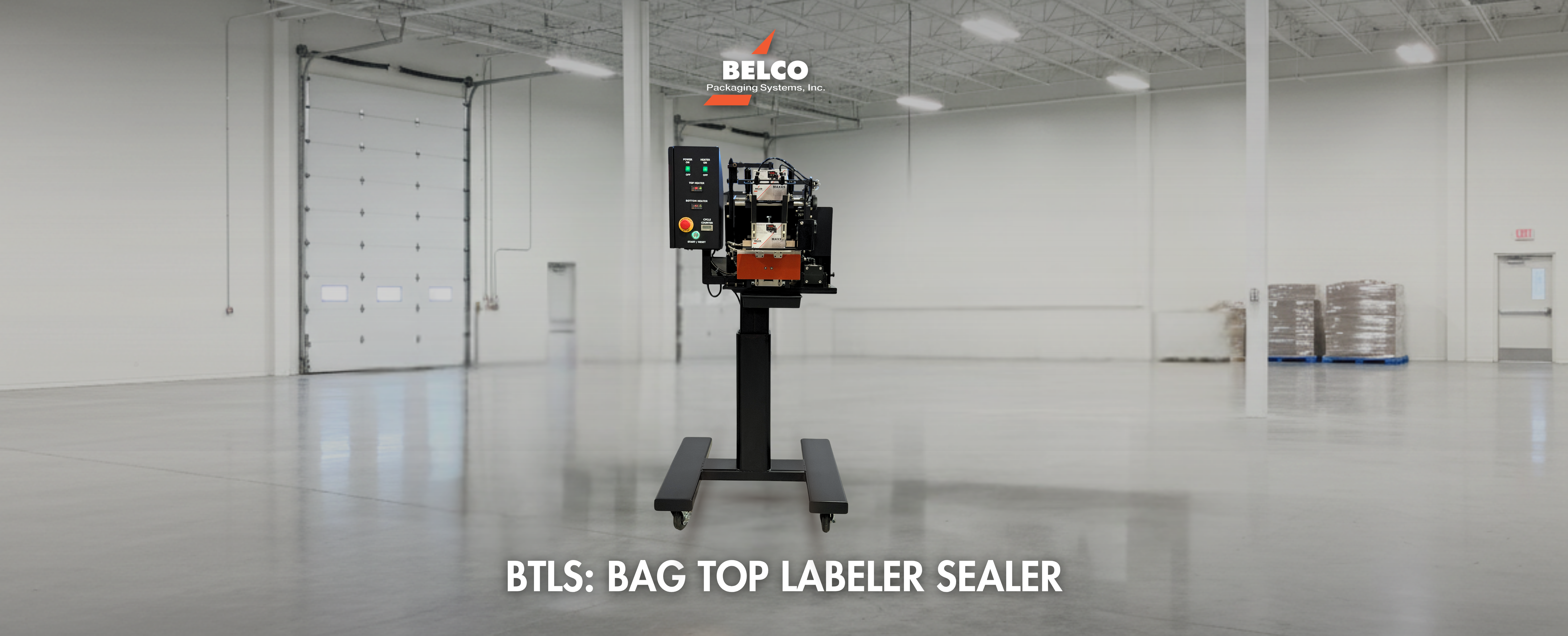

Belco BTLS Bag Top Labeler-Sealer machine for efficient labeling and sealing of retail bags.

BTLS Bag Top Labeler-Sealer: Guide, Specs & Applications

Aya Mheidly
Aya Mheidly

For years, many packaging lines relied on earlier systems such as the Maxx 5, a well-known header-labeling machine that helped define the workflow still used in production today. Belco’s BTLS Bag Top Labeler-Sealer was developed as the new-generation solution that builds on the familiar operating style of the Maxx 5 while introducing modern engineering, improved speed, and reduced maintenance. Operators who have experience with the Maxx 5 will immediately recognize the basic workflow, but the BTLS delivers a significantly more efficient, precise, and reliable evolution of that original approach.s

In high-volume packaging environments, speed, consistency, and product presentation matter. Manufacturers that handle food products, snacks, candy, confectionery, or small retail goods need a packaging system that applies header labels and seals bags quickly, cleanly, and reliably.

This is exactly where the BTLS Bag Top Labeler-Sealer from Belco Packaging Systems Inc. excels. Built for continuous daily operation, the BTLS automates a process that many businesses still perform manually, saving time, reducing labor costs, and improving product quality.

BTLS Image
Belco BTLS bag top labeler sealer machine for automatic labeling

What Is a BTLS Bag Top Labeler-Sealer?

The BTLS Bag Top Labeler-Sealer (BTLS 8 & BTLS 10) is a compact, industrial-grade machine that applies a header label, performs a hermetic seal, punches a reinforced hang-hole, and returns the completed package to the operator, in less than one second.
This makes the BTLS one of the fastest and most efficient header-labeling systems available today.

What Is a BTLS Bag Top Labeler-Sealer?

  • Applies a header label
  • Hermetically seals the bag
  • Heat-sealed hang-hole punch (5/16”)
  • Returns bag to operator

Why Packaging Teams Choose the BTLS

Businesses upgrade to the BTLS because it simplifies workflow, improves package consistency, and eliminates error-prone manual steps like folding, stapling, or adhesive labeling.

Key Advantages

    • 25-30 packages per minute (35 max)
    • No compressed air required
    • No adhesive coatings required on labels
    • Operator-friendly “Soft Touch” activation
    • Fast label changeovers, no tools needed
    • Height-adjustable for ergonomic operation
    •  Heavy-duty construction for 24/7 service life

Compared to manual sealing and labeling, the BTLS achieves significantly higher throughput with far greater consistency.

For Operators Familiar with Doboy JSL Machines

Many packaging professionals are familiar with long-standing header-labeling equipment such as the Doboy JSL, which has been used for decades across various production lines. The BTLS Bag Top Labeler-Sealer is built with a workflow and operating style that will feel immediately familiar to anyone who has used those earlier systems.

Both machines share the same foundational concept:

    • Hand-fed bag placement
    • A mechanical cycle that applies a header label
    • Heat sealing to secure the label and bag together
    • A clean, retail-ready presentation

Because of these similarities, operators who have experience with legacy systems like the Doboy JSL typically adapt to the BTLS quickly and easily.

Where the BTLS stands apart is in the modern engineering behind that familiar process. Updated temperature control, simplified mechanics, quicker label changeovers, and faster cycle times allow the BTLS to deliver the same fundamental workflow with greater efficiency, consistency, and ease of use.

For companies that appreciate the operation style of older systems but want the advantages of newer technology, the BTLS provides a natural and significantly improved next step.



BTLS Guide
Labeled diagram of the Belco BTLS bag top labeler sealer highlighting key components for labeling and sealing pre-filled bags.

BTLS 8 vs BTLS 10: What’s the Difference?

Belco offers two versions of the machine:

BTLS 8

    • Sealing Width: 8 inches
    • Ideal for smaller retail packages

BTLS 10

    • Sealing Width: 10 inches
    • Supports larger bags and wider label formats

Both models share the same operational speed, design features, and labeling technology.



Label & Material Compatibility

One of the machine’s biggest advantages is its compatibility with simple, inexpensive label materials.

Recommended Labels

    • 80–100# Chrome Coat or Clay Coat paper
    • Glossy magazine-cover style stockl packages
    • 3.5–4.5 mil typical thickness (up to 5.5 mil supported)
    • No adhesives, no scoring, no coatings

Labels are laminated directly to the bag using a combination of time, temperature, and pressure, a reliable process that prevents peeling or deformation.



Recommended Bags

    • BOPP (Biaxially Oriented Polypropylene)
    • Cellophane
    • 3.5–4.5 mil typical thickness (up to 5.5 mil supported)
    • 164 BOPP (1.64 mil) with Saran & Acrylic coatings

This film preserves freshness while providing an excellent sealing surface for header labels.



How the BTLS Labeling & Sealing Process Works

The BTLS uses a precision-engineered combination of heat, timing cams, and a servo-driven vacuum system.

The process:

    1. Operator places a filled bag on the sealing plate
    2. “Soft Touch” plate activates the cycle
    3. Vacuum suction cups pull a label from the hopper
    4. Seal jaws apply heat and pressure
    5. Bag receives:
      1. a professional laminated header label
      2. a hermetic seal
      3. a reinforced hang-hole

    6. Finished bag is returned to the operator


The label dispensing system is exceptionally reliable, and the machine’s stepper motor ensures consistent start/stop accuracy.

BTLS Technical Specifications

Sealing Dimensions

    • BTLS 8: 8” W × 2.25” D
    • BTLS 10: 10” W × 2.25” D

Label Sizes

    • Width: 3”–8” (BTLS 8), up to 10” (BTLS 10)
    • Width: 3”–8” (BTLS 8), up to 10” (BTLS 10)

Operating Height

    • Adjustable 40”–55”

Temperature Range

    • Typical: 275–300°F
    • For thicker labels: 350–360°F

Production Rate

    • 25–30 ppm average, up to 35 ppm max



BTLS Markets-1
 Belco BTLS bag top labeler sealer machine ideal for packaging candy, spices, and nuts.

Who Should Use the BTLS Bag Top Labeler-Sealer?

The BTLS is ideal for businesses that need:

    • Candy & confectionery
    • Nuts, seeds & trail mixes
    • Coffee, tea & specialty foods
    • Spices & seasonings
    • Small retail items
    • Hardware & craft supplies
    • General merchandise

Any business that packages hand-filled or pre-filled bags can improve output with a BTLS.

BTLS Demo Video: See the Machine in Action



Watch how the Belco Packaging Systems’ BTLS applies labels and hermetically seals bags in under one second.

Industries That Benefit from the BTLS

The BTLS is used extensively in:

    • A compact, reliable sealing system
    • Fast ROI from reduced labor
    • High-speed output without automation complexity
    • A clean retail-grade presentation
    • Minimal maintenance and simple training

Whether you’re scaling production or replacing slow manual processes, the BTLS offers unmatched speed and efficiency.

Conclusion

The BTLS Bag Top Labeler-Sealer is one of the most efficient solutions for applying header labels and sealing bags in the food and retail packaging industry. Belco’s rugged, operator-friendly design and consistent production rate make it the go-to choice for businesses seeking improved speed, presentation, and packaging reliability.
